High Ultraviolet Calcium Fluoride-B

High Calcium Fluoride-B

Applications: Light source system, lighting system, and measurement system

Types: Flat, Lens, Wedge, Prism, and Cylinder

Accuracy: Surface finish 20-10, wavefront transmission distortion λ/50, roughness 0.13nm, SSD 50nm

I want to customize Consult

Price
Invoice
Quality
Deivery
Logistics
Receive
Returns
Customized

Please leave a message or inquire about the price online to ensure a satisfactory price for you.

All products are provided with invoices, with a tax point of 13.

The product undergoes multiple inspections before being stored, and the quality is guaranteed. Please use it with confidence.

Spot products, shipped within 48 hours. For non stock or customized products, please consult.

International order logistics include DHL, FedEx, TNT, and EMS

When receiving the product, please ensure the integrity of the product packaging box first. If there is serious damage to the appearance, please refuse and contact us, and we will handle it for you as soon as possible.

Optical products are special items and cannot be returned or exchanged unless there is a quality issue with the product itself

If you need customization or bulk production, please contact us online and we will offer you a discounted price.

	Dia(mm)	ThK(mm)	Structure	Orientation
	Screen Reset 3-420 3-200	Screen Reset 0.5-60	Screen Reset Polycrystalline Monocrystalline	Screen Reset None <100> <110> <111>
More+ Less	3-420	0.5-60	Polycrystalline	None
DUV Calcium Fluoride-B，3-420mm，Polycrystalline Number：CaF2F004 Dia(mm)：3-420 ThK(mm)：0.5-60 Structure：Polycrystalline Orientation：None Shape：Customizable Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Material：Calcium Fluorid（CaF2） Transmission Range：0.13-10μm Density(g/cm³)：3.18 REACH：Compliant ROHS：Compliant
More+ Less	3-200	0.5-60	Monocrystalline	<100>
DUV Calcium Fluoride-B，3-200mm，Monocrystalline<100> Number：CaF2F003 Dia(mm)：3-200 ThK(mm)：0.5-60 Structure：Monocrystalline Orientation：<100> Shape：Customizable Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Material：Calcium Fluorid（CaF2） Transmission Range：0.13-10μm Density(g/cm³)：3.18 REACH：Compliant ROHS：Compliant
More+ Less	3-200	0.5-60	Monocrystalline	<110>
DUV Calcium Fluoride-B，3-200mm，Monocrystalline<110> Number：CaF2F002 Dia(mm)：3-200 ThK(mm)：0.5-60 Structure：Monocrystalline Orientation：<110> Shape：Customizable Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Material：Calcium Fluorid（CaF2） Transmission Range：0.13-10μm Density(g/cm³)：3.18 REACH：Compliant ROHS：Compliant
More+ Less	3-200	0.5-60	Monocrystalline	<111>
DUV Calcium Fluoride-B，3-200mm，Monocrystalline<111> Number：CaF2F001 Dia(mm)：3-200 ThK(mm)：0.5-60 Structure：Monocrystalline Orientation：<111> Shape：Customizable Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Material：Calcium Fluorid（CaF2） Transmission Range：0.13-10μm Density(g/cm³)：3.18 REACH：Compliant ROHS：Compliant

High Calcium Fluoride-B

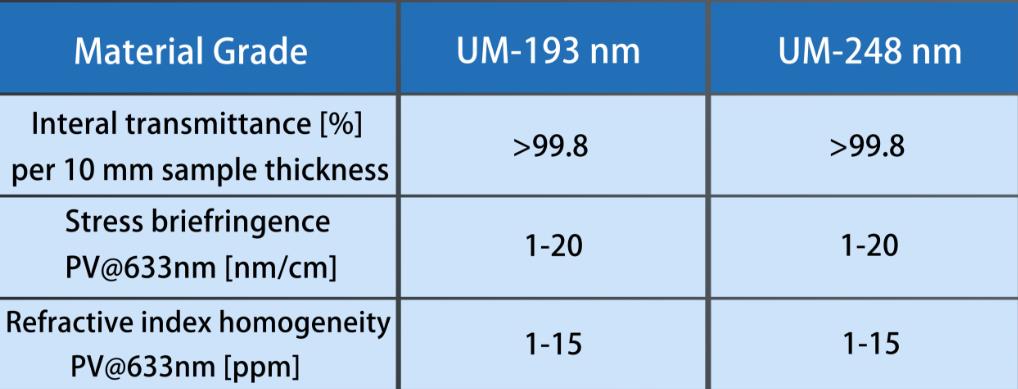

Technical Parameter

Material Data

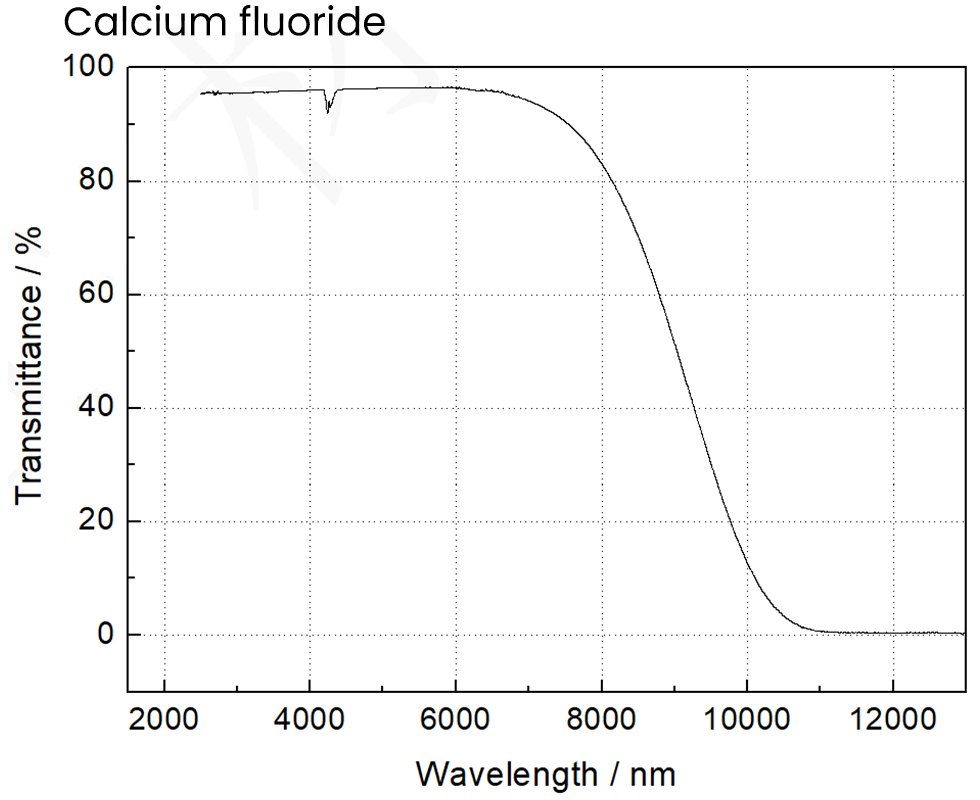

Transmittance

Application Field
