EUV MgF2

Product Introduction

The extreme ultraviolet magnesium fluoride material must be made of high purity raw materials. Also process control is performed during crystal growth to obtain higher transmittance.The complexity of the photoionic welding process places extreme demands on the orientation, microstructure, processing and annealing of the crystal. Magnesium fluoride is a powerful material that can be used to resist chemical corrosion, laser damage, mechanical shock and thermal shock.

We can provide various specifications of extreme ultraviolet magnesium fluoride blanks and finished products. The shapes of blanks include round, rectangular, drilled, windows, lens, ,galvanometer,shaped, etc.

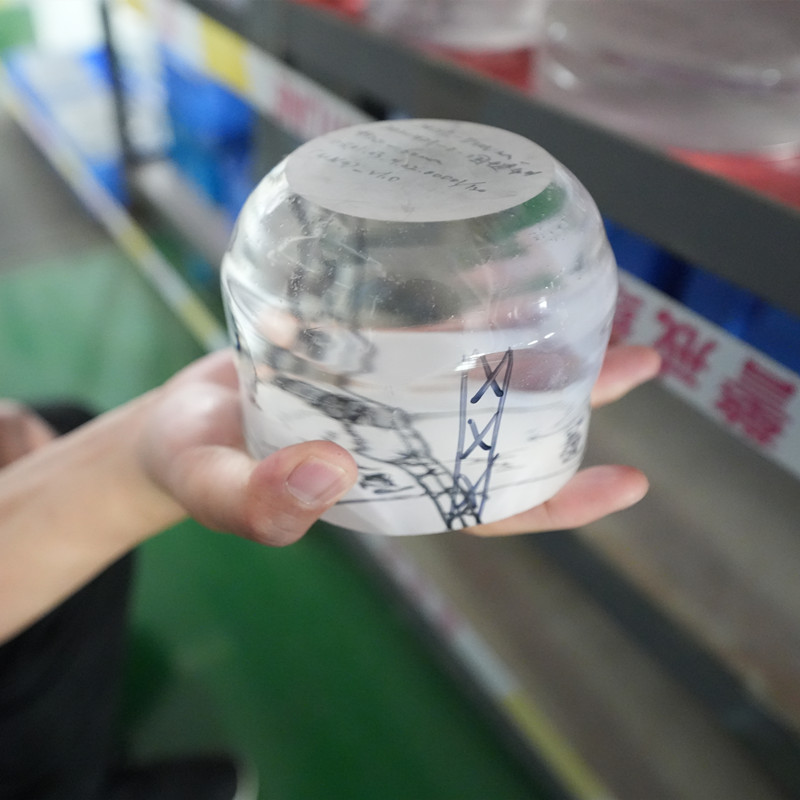

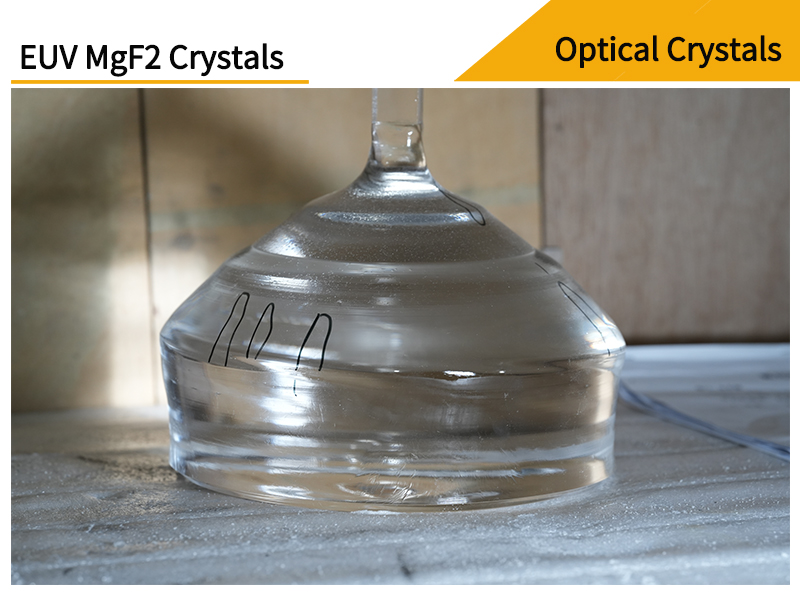

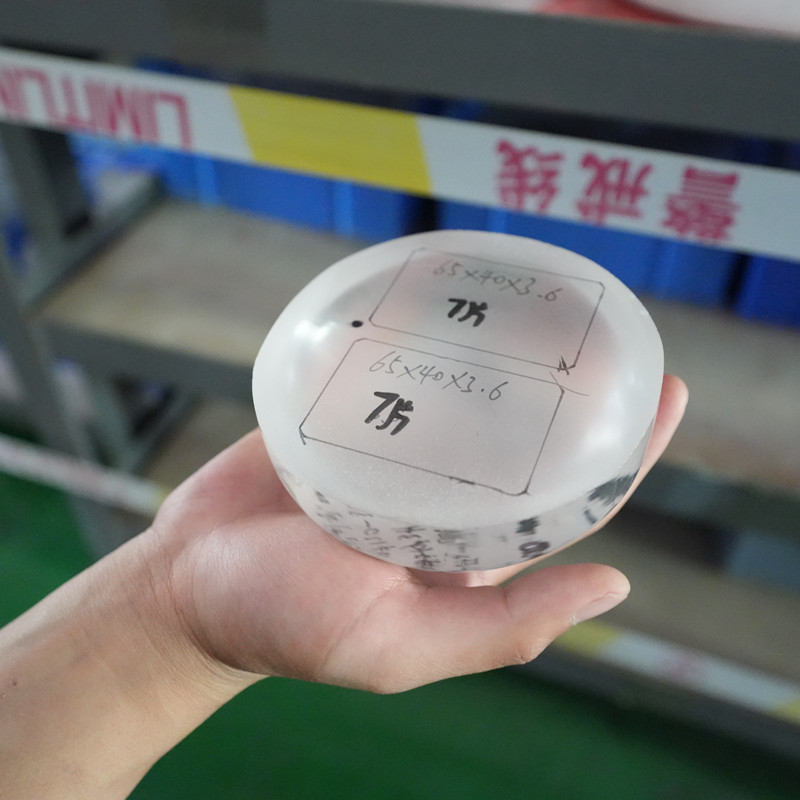

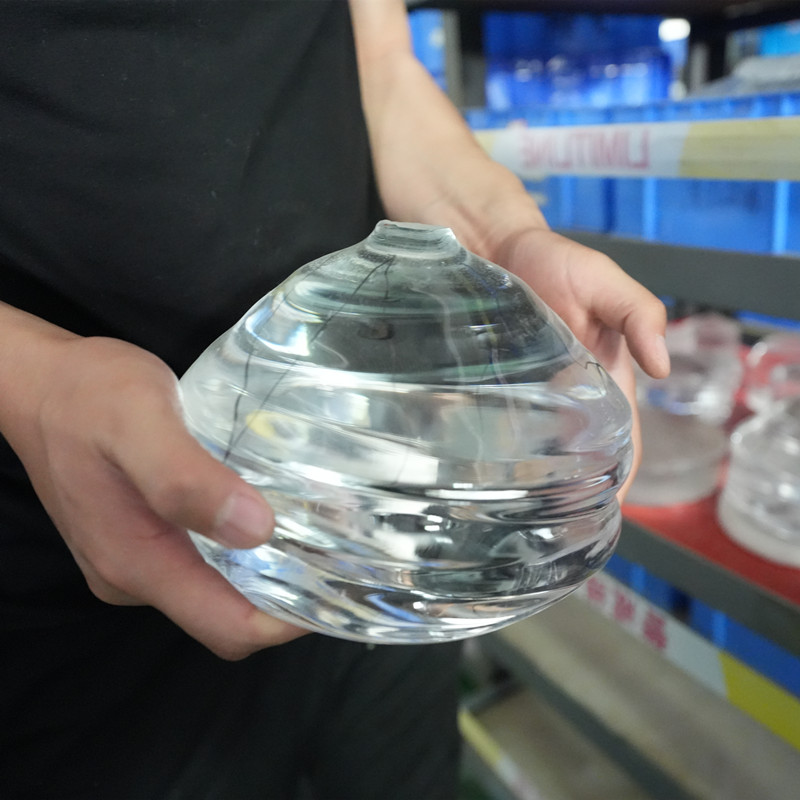

Pictures of EUV magnesium fluoride The extreme ultraviolet magnesium fluoride material must be made of high purity raw materials. Also process control is performed during crystal growth to obtain higher transmittance.The complexity of the photoionic welding process places extreme demands on the orientation, microstructure, processing and annealing of the crystal.Our company can provide a variety of specifications of extreme ultraviolet MgF2 blanks and finished products to meet the requirements of different customers.

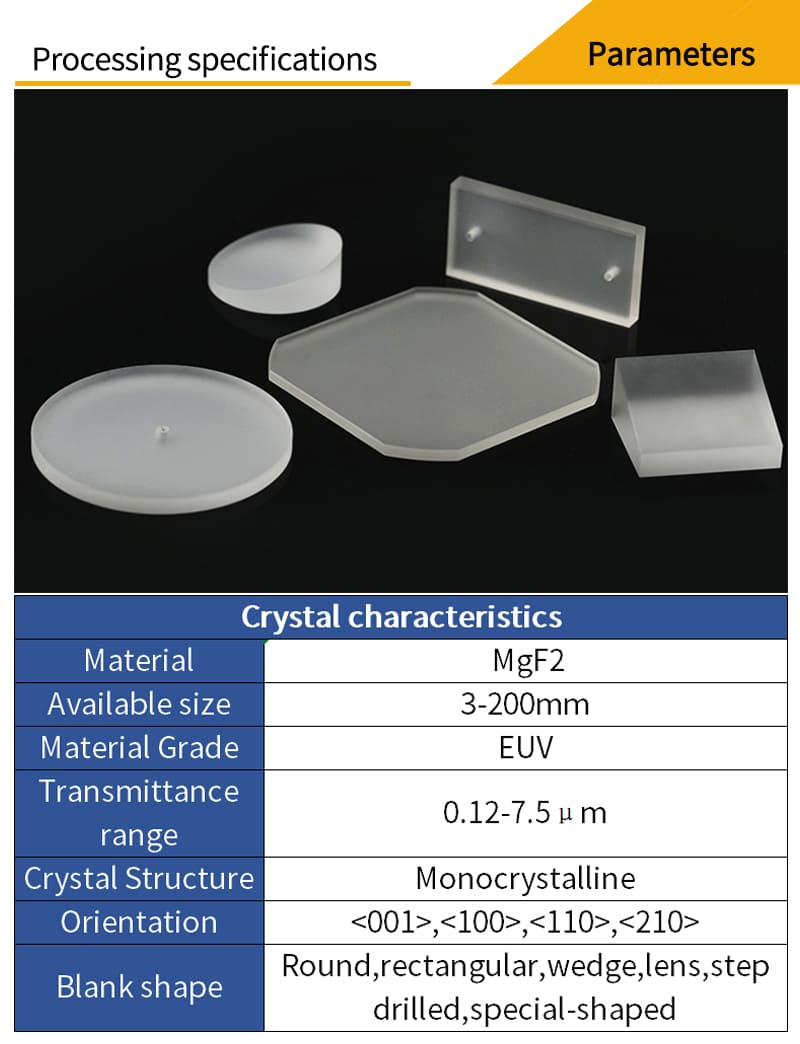

Customized parameters for EUV magnesium fluoride

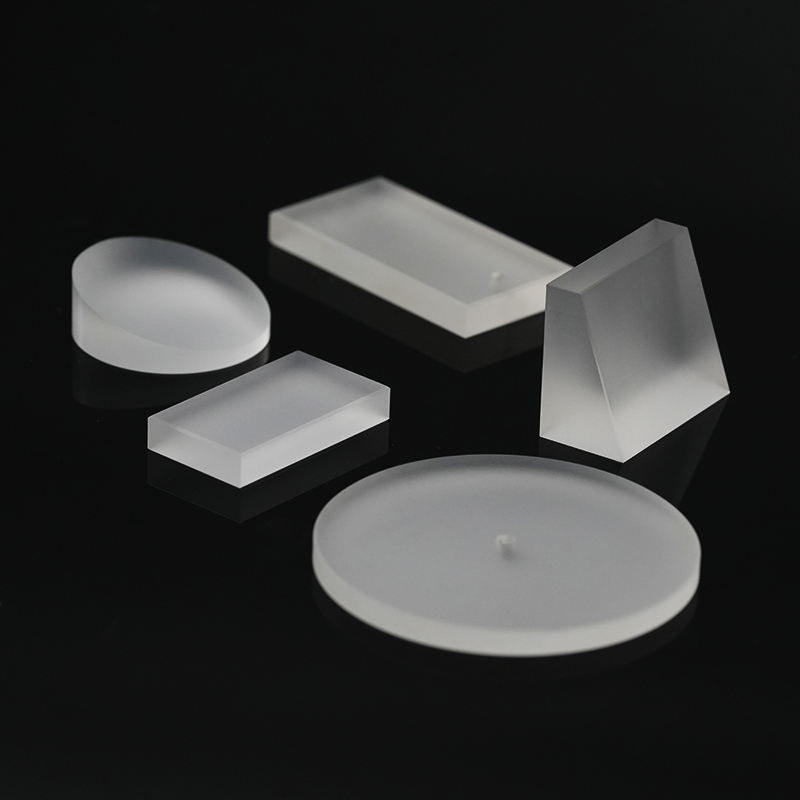

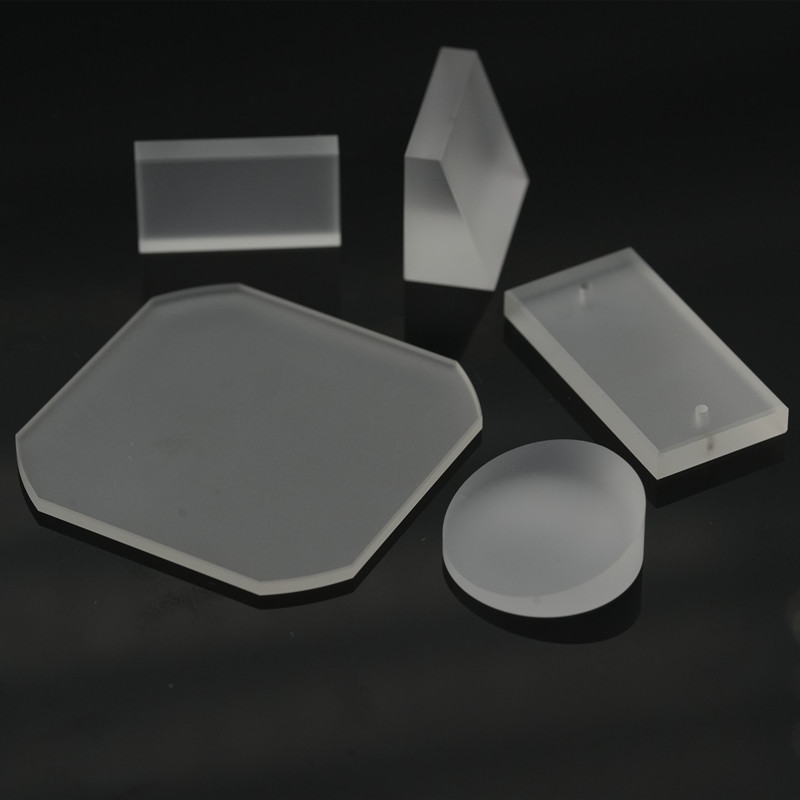

Our company can supply many specifications of the extreme ultraviolet magnesium fluoride blanks and finished products.The shape of the blank contains round, rectangular, drilled, windows, lenses, galvanometers, special shaped etc.

EUV magnesium fluoride material data and transmittance curves

Magnesium fluoride is a powerful material that can be used to resist chemical corrosion, laser damage, mechanical shock and thermal shock.It is harder than calcium fluoride, but relatively soft compared to fused silica, and has a slight hydrolysis. It has a Nucleus hardness of 415 and a refractive index of 1.38.

EUV magnesium fluoride coating options


Coating refers to coating a transparent electrolyte film or metal film on the surface of the substrate material by physical or chemical methods. The purpose is to change the reflection and transmission characteristics of the material surface to reduce or increase the reflection, beam splitting, color separation, light filtering, polarization and other requirements.We can provide various optical coatings such as anti-reflective films, high-reflective films, spectral films, and metallic films. Broadband anti-reflective films are available for UV, visible, NIR and mid-infrared wavelengths.

Cystal classification of EUV magnesium fluoride

UV Grade

●Typical Size:φ40mm×100mm、φ70mm×100mm、φ100mm×100mm

●Maximum size:φ200mm×50mm

●Wavelength Range:280 nm - 6 μm

●Crystal Structure:Monocrystalline,Sub-structure,Polycrystalline

●Transmittance:>92%@280nm-6μm(10mm thick sample)

●Internal transmittance:>99.0% @ 280nm(10mm thick sample)

●Average stress birefringence:10~20nm/cm@633nm;

●Average stress birefringence<10nm/cm,Needs to be grown by CZ.

●Optical uniformity:PV 3 - 20ppm@633nm

●25mW green light test without naked eye visible light column, bubbles, scattered particles, etc.

DUV Grade

●Typical Size:φ40mm×100mm、φ70mm×100mm、φ100mm×100mm

●Maximum size:φ200mm×50mm

●Wavelength Range:120nm - 6 μm.

●Monocrystalline,Sub-structure,Polycrystalline

●Transmittance: T>60%@121nm;T>85%@160nm;T>90%@200nm(10mm thick sample)

●Internal transmittance:>99.0% @ 200nm(10mm thick sample)

●Average stress birefringence:小于10nm/cm@633nm,Needs to be grown by CZ.

●Optical uniformity:PV 3 - 10ppm@633nm

●25-125mW green light test without naked eye visible light column, bubbles, scattered particles, etc.

EUV magnesium fluoride crystal transmittance test

Transmittance test

●Inspection equipment

UV-Visible Spectrophotometer

●Samples

Magnesium fluoride crystals, diameter not less than 20 ~ 50mm, thickness 10 ± 0.5mm, through the polished surface finish to 80/50

●Test wavelength range

190nm~1100nm,2.5μm~12μm

●Qualification requirements:

T>92%@280nm

EUV magnesium fluoride crystal structure

Monocrystalline

●There are no visible grain boundaries or wicker-like stripes on the crystal surface when examined under naked eye daylight.

Single crystal structure photo of EUV magnesium fluoride

Sub-crystal

●When examined under naked-eye daylight, there are willow stripes on the surface of the crystal with an area < 1/6 (end diameter), and the willow stripes are not visible after polishing .

Photograph of EUV magnesium fluoride polycrystalline structure

Polycrystalline

●When examined under naked-eye daylight, there are penetrating crystal boundary lines on the surface of the crystal, and the difference in the degree of light and darkness between the two sides of the crystal boundary lines is obvious.

Material Selection

●N-BK7

    N-BK7 is the most commonly used optical glass for processing high quality optical components,, with excellent transmittance from visible to near-infrared wavelengths(350-2000nm), and has a wide range of applications in telescopes, lasers and other fields. N-BK7 is generally chosen when the additional benefits of UV fused silica (very good transmittance and low coefficient of thermal expansion in the UV band) are not required.

●UV fused silica

     UV fused silica has a high transmission from the UV to NIR  (185-2100nm).  In addition, UV fused silica has better uniformity and lower coefficient of thermal expansion than H-K9L (N-BK7), making it particularly suitable for high power laser and imaging applications.

●Calcium fluoride

    Due to its high transmittance and low refractive index within a wavelength of 180nm-8um, calcium fluoride is often used as windows and lenses in spectrometers and thermal imaging systems. In addition, it has good applications in excimer lasers because of its high laser damage threshold.

●Barium fluoride

    Barium fluoride have high transmittance from the 200nm-11um and they are resistant to stronger high-energy radiation. At the same time, barium fluoride has excellent scintillation properties and can be made into various infrared and ultraviolet optical components. However, the disadvantage of barium fluoride is that it is less resistant to water. When exposed to water, the performance degrades significantly at 500℃, but it can be used for applications up to 800℃ in a dry environment. At the same time, barium fluoride has excellent scintillation properties and can be made into various infrared and ultraviolet optical components.It should be noted that when handling barium fluoride material, gloves must be worn at all times and hands must be washed thoroughly after handling.

●Magnesium fluoride

    Magnesium fluoride is ideal for applications in the wavelength range of 200nm-6um. Compared to other materials, magnesium fluoride is particularly durable in the deep UV and far IR wavelength ranges. Magnesium fluoride is a powerful material for resistance to chemical corrosion, laser damage, mechanical shock and thermal shock. It is harder than calcium fluoride crystals, but relatively soft compared to fused silica, and has a slight hydrolysis. It has a Nucleus hardness of 415 and a refractive index of 1.38.

●Zinc selenide

    Zinc selenide has high transmittance in the 600nm-16um and is commonly used in thermal imaging, infrared imaging, and medical systems. Also, due to its low absorption, zinc selenide is particularly suitable for use in high-power CO2 lasers. It should be noted that zinc selenide is a relatively soft material (Nucleus hardness 120) and is easily scratched, so it is not recommended for use in harsh environments. Extra care should be taken when holding, and cleaning, pinching or wiping with even force, and it is best to wear gloves or rubber finger covers to prevent tarnishing. Cannot be held with tweezers or other tools.

●Silicon

    Silicon is suitable for use in the NIR band from 1.2-8um.Because of its low

    density, silicon is particularly suitable in applications where weight

    requirements are sensitive, especially in the 3-5um . Silicon has a Nucleus

    hardness of 1150, which is harder than germanium and not as fragile as

    germanium.It is not suitable for transmission applications in CO2 lasers

    because of its strong absorption band at 9um.

●Germanium

    Germanium is suitable for use in the near-infrared band of 2-16um and is well

    suited for infrared lasers. Due to its high refractive index, minimal surface

    curvature and low chromatic aberration, germanium does not usually require

    correction in low power imaging systems. However, germanium is more

    severely affected by temperature, and the transmittance decreases with

    increasing temperature; therefore, it can only be applied below 100°C. The

    density of germanium (5.33 g/cm³) is taken into account when designing

    systems with strict weight requirements. Germanium lenses feature a

    precision diamond lathe turned surface, a feature that makes them well suited

    for a variety of infrared applications, including thermal imaging systems,

    infrared beam splitters, telemetry, and in the forward-looking infrared (FLIR)

    field.

●CVD ZnS

    CVD ZnS is the only infrared optical material, other than diamond, that covers visible to long-wave infrared (LWIR), full wavelength and even microwave wavelengths, and is currently the most important LWIR window material. It can be used as windows and lenses for high-resolution thermal imaging systems, as well as for advanced military applications such as "tri-optical" windows and near-infrared laser/dual-color infrared composite windows.

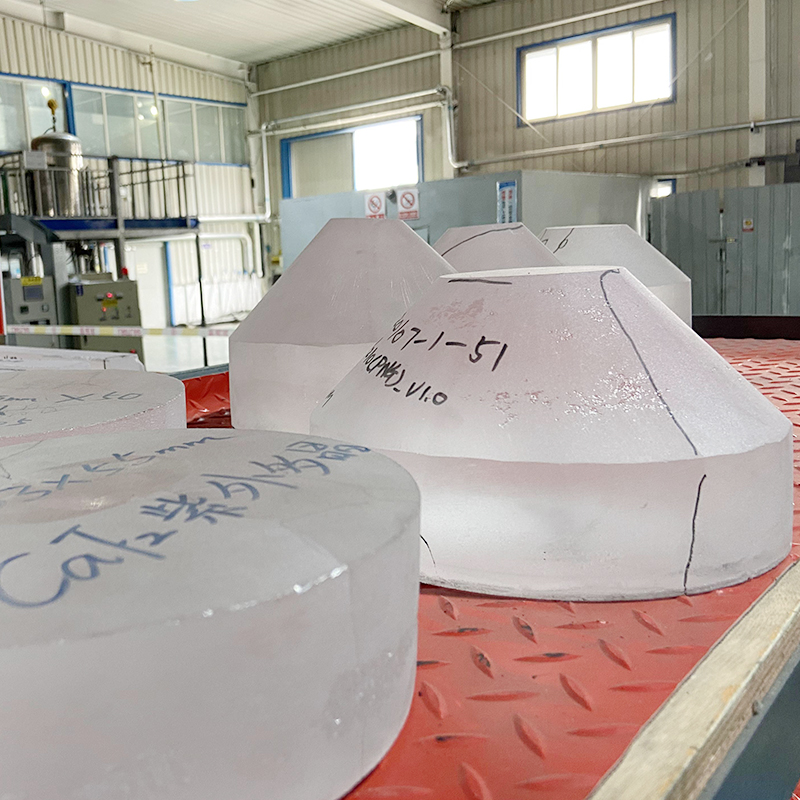

Growing workshop

Pictures of EUV magnesium fluoride crystal growth workshopCutting workshopPictures of EUV magnesium fluoride crystal cutting workshopPolishing workshopPictures of EUV magnesium fluoride crystal polishing workshopCoating workshopPictures of EUV magnesium fluoride crystal coating workshopAspheric workshoppictures of EUV magnesium fluoride aspheric lens polishing equipmentZYGO detectionZygo interferometer device for detecting PV of EUV magnesium fluoride
