Calcium fluoride(CaF2) Right Angle Prism

Calcium fluoride right-angle prism deflects incident light by 90° or 180°. When light is incident from one right-angle side of the prism, the light will undergo total internal reflection at the glass/air interface of the beveled side and exit from the other right-angle side. When the light beam is incident from an oblique plane, the beam will be totally reflected at the junction of the two right-angle surfaces with the air, deflected 180° and exit from the oblique plane. UMOPTICS offers calcium fluoride right-angle prisms in a variety of sizes.

Contact Us Online sales@umoptics.com

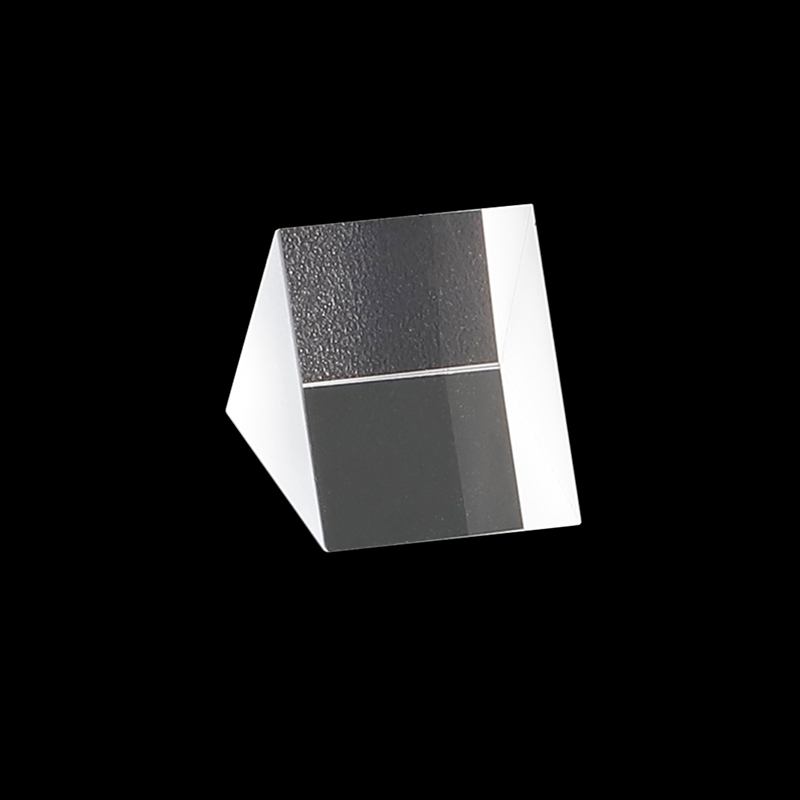

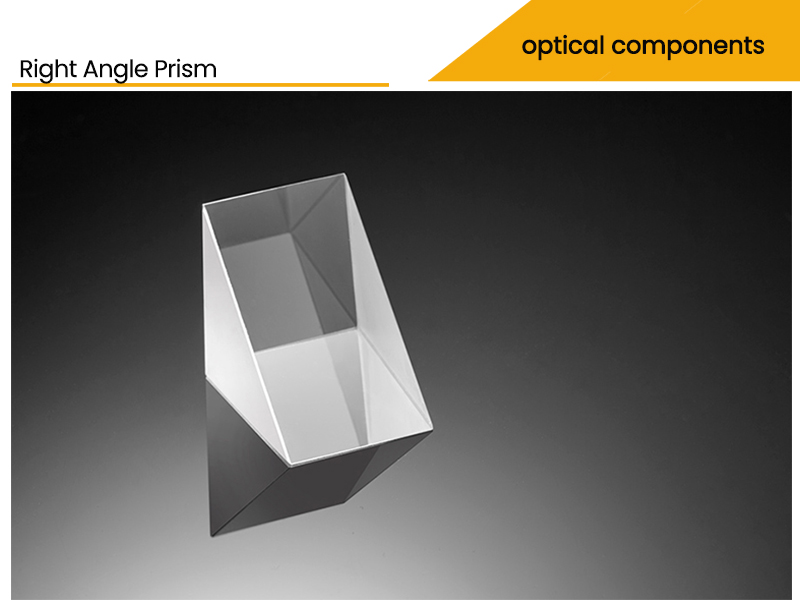

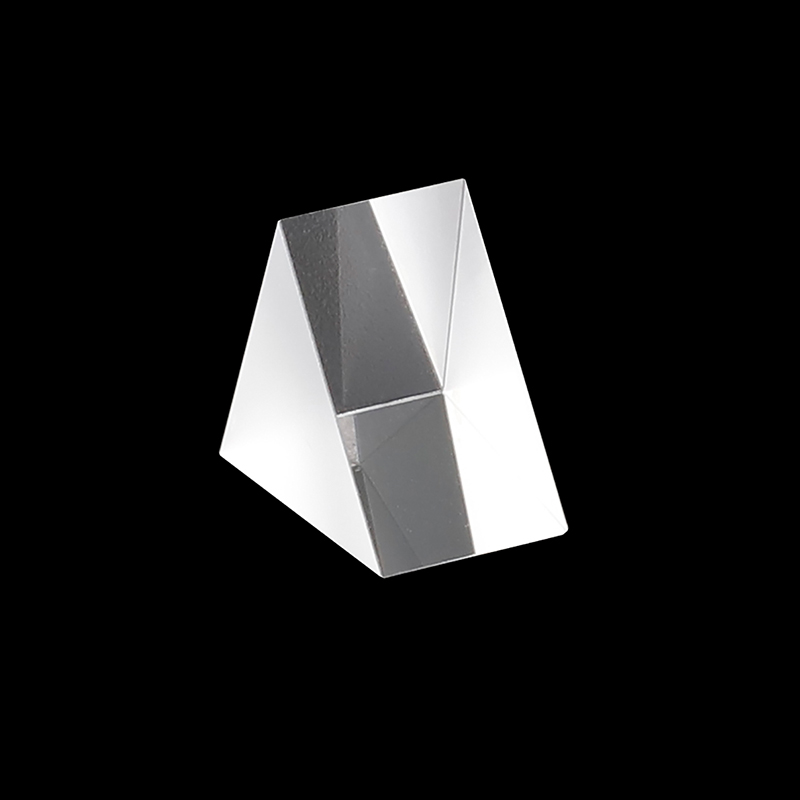

Pictures of calcium fluoride right angle prism

Calcium fluoride right-angle prism deflects incident light by 90° or 180°. When light is incident from one right-angle side of the prism, the light will undergo total internal reflection at the glass/air interface of the beveled side and exit from the other right-angle side. When the light beam is incident from an oblique plane, the beam will be totally reflected at the junction of the two right-angle surfaces with the air, deflected 180° and exit from the oblique plane. UMOPTICS offers calcium fluoride right-angle prisms in a variety of sizes.

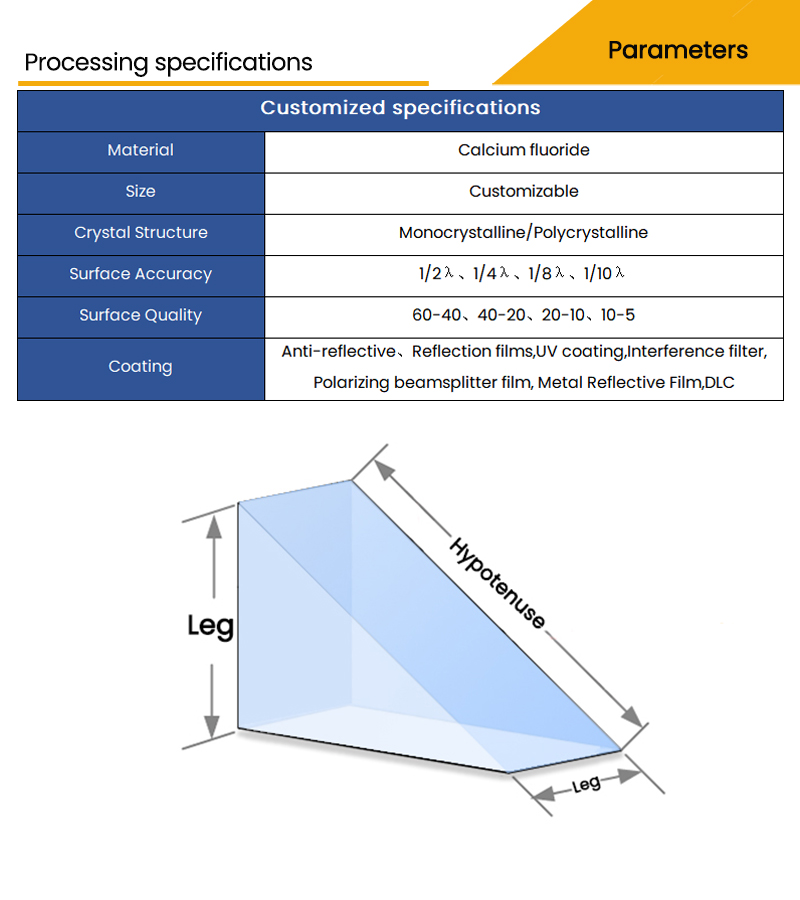

Customized parameters and drawings for calcium fluoride right angle prism

Calcium fluoride right-angle prism is a commonly used prism. UMOPTICS can customize calcium fluoride right-angle prisms in a variety of sizes. Depending on your application, you can choose a anti-reflective film and reflective film.

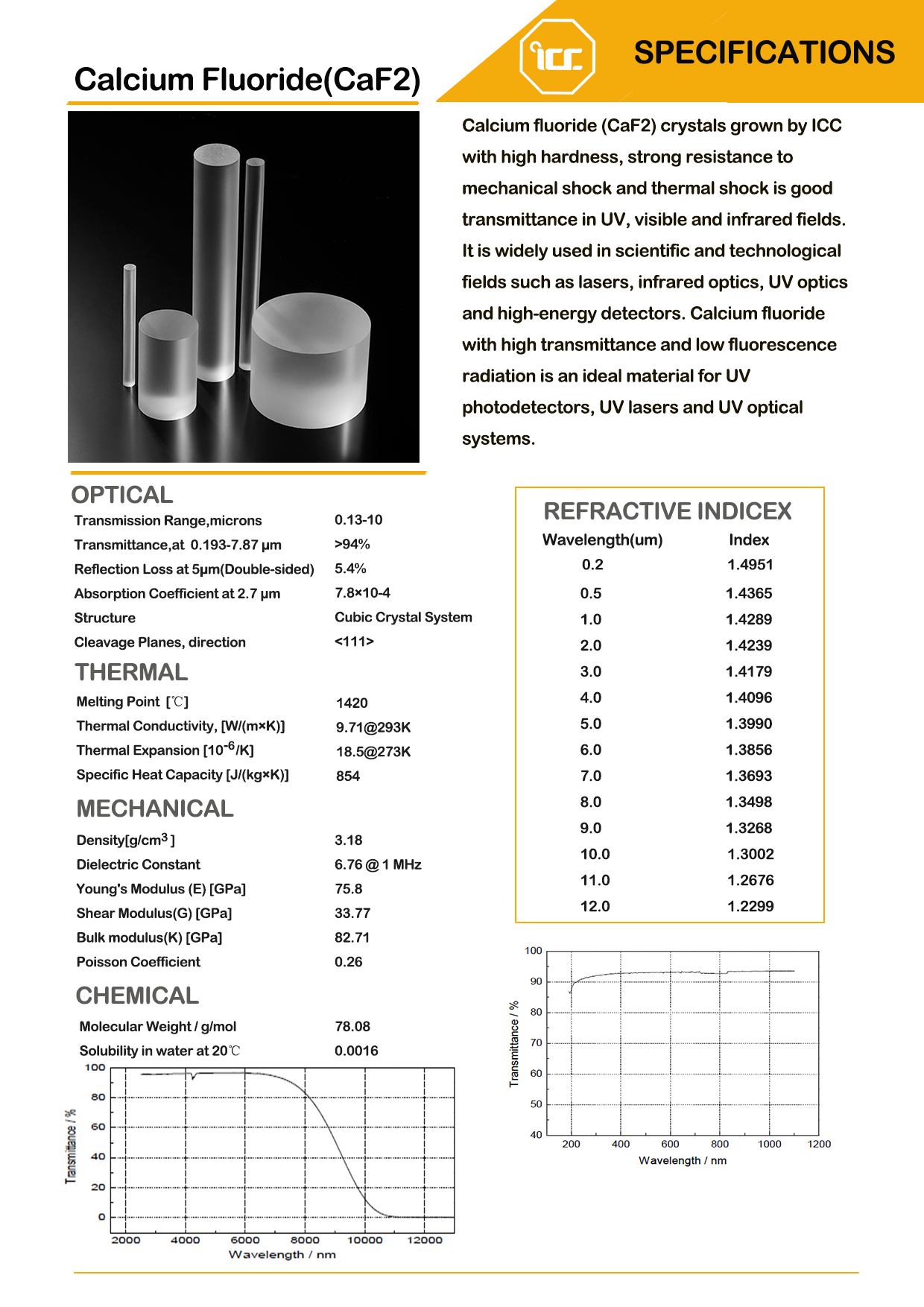

Calcium fluoride right angle prism material data and transmittance curves

Calcium fluoride right angle prism coating options

Coating refers to coating a transparent electrolyte film or metal film on the surface of the substrate material by physical or chemical methods. The purpose is to change the reflection and transmission characteristics of the material surface to reduce or increase the reflection, beam splitting, color separation, light filtering, polarization and other requirements.We can provide various optical coatings such as anti-reflective films, high-reflective films, spectral films, and metallic films. Broadband anti-reflective films are available for UV, visible, NIR and mid-infrared wavelengths.

Growing workshop

Pictures of calcium fluoride right angle prism crystal growth workshopCutting workshopPictures of calcium fluoride right angle prism crystal cutting workshopPolishing workshopPictures of calcium fluoride right angle prism polishing workshopCoating workshopPictures of calcium fluoride right angle prism coating workshopAspheric workshoppictures of calcium fluoride aspheric lens polishing equipmentZYGO detectionZygo interferometer device for detecting PV of calcium fluoride right angle prism
