Calcium fluoride (CaF2)wedge windows

Product Introduction

    Wedge windows have two planes with certain curvature angle. The two non-parallel planes can avoid the interference effect (Etalon effect) caused by the reflected light from the front and rear surfaces of the highly parallel windows, and also avoid the optical interference feedback from the laser resonant cavity which leads to the poor stability of the laser output, mode jumping, etc. It is commonly used to deflect the incident beam to a specified direction by a certain deflection angle. When used in pairs, the outgoing beam can be positioned in any direction within an angular cone with the incident beam as the axis by the relative rotation of the two wedges.

  Calcium fluoride (CaF2), colorless cubic crystal, insoluble in water, is one of the few natural crystals that exist in nature, and has important applications in the optical industry because of its good optical properties, such as wide transmission range, high transmittance, low refractive index, and large relative dispersion.

   Our Company can provide CaF2 wedged windows with diameters from 2-300mm and thicknesses from 0.12-60mm (accuracy up to 20-10, 1/10L@633nm), with 4 major processes: gel disc polishing, high speed polishing, ring polishing and CNC polishing, with ZYGO, AFM, reflection and transmission eccentric meters, 15 second goniometer, UV gel centering system, non-contact Laser. Thickness gauge, 2D imager and sphere diameter gauge to ensure the accuracy of data.

Coating selection:

    MgF2, UV-AR,UV-VIS ,VIS-EXT, VIS-NIR, NIR I, NIR II, Telecom-NIR,SWIR ,SWIR ,YAG-BBAR.

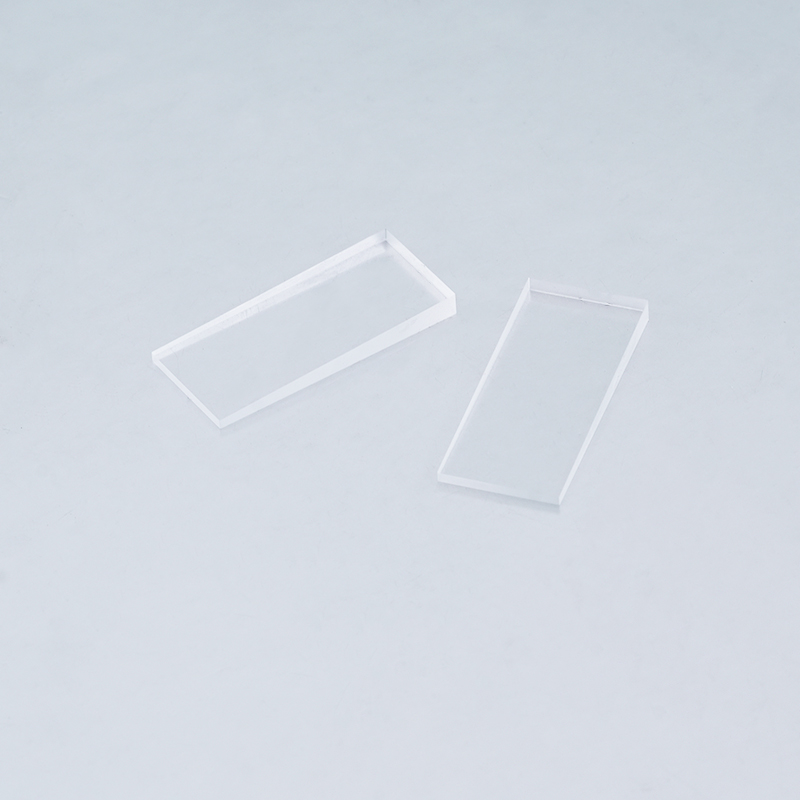

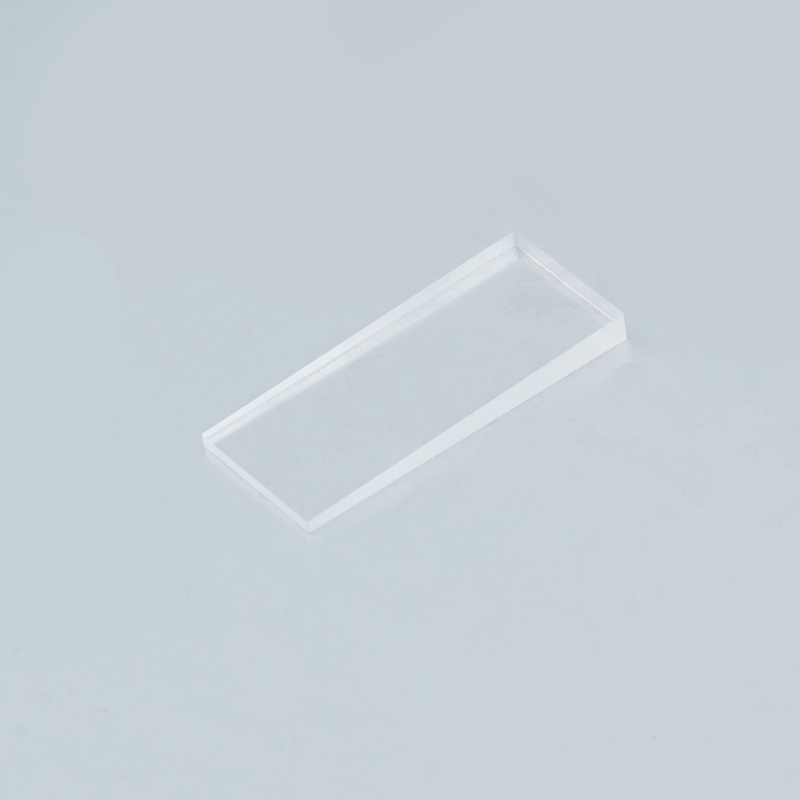

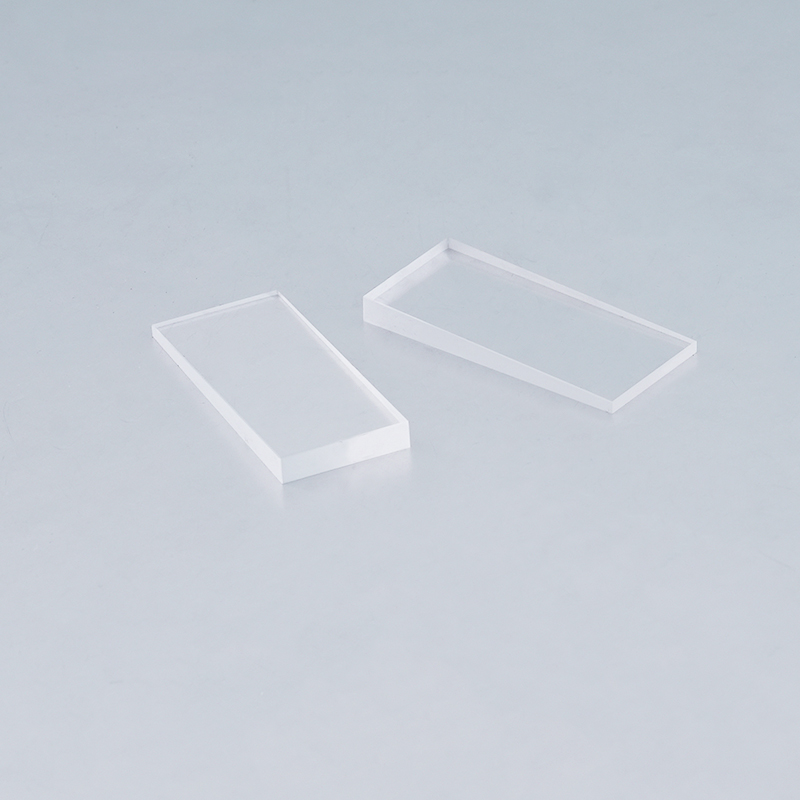

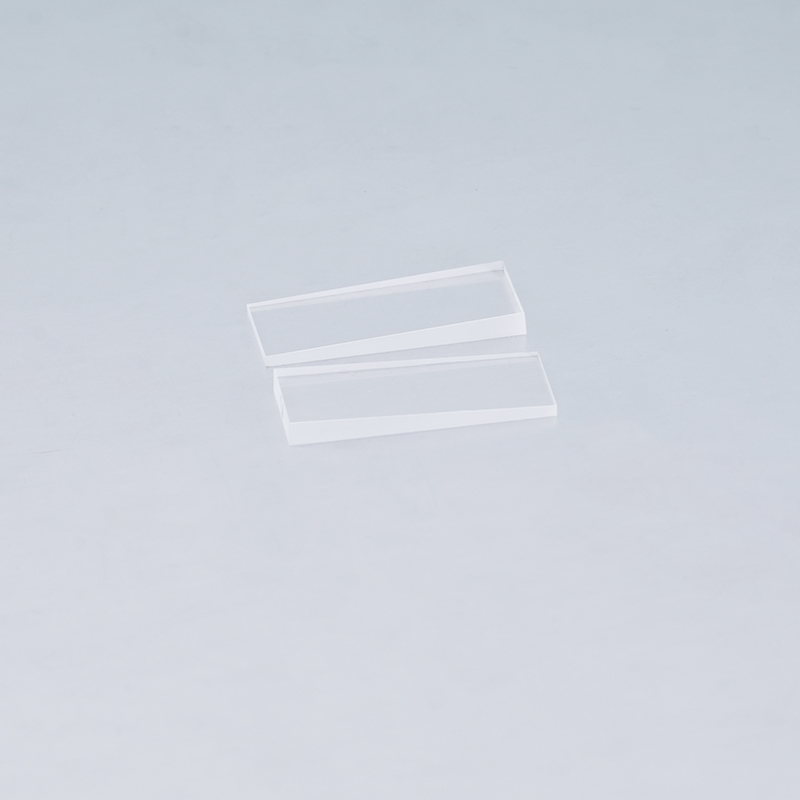

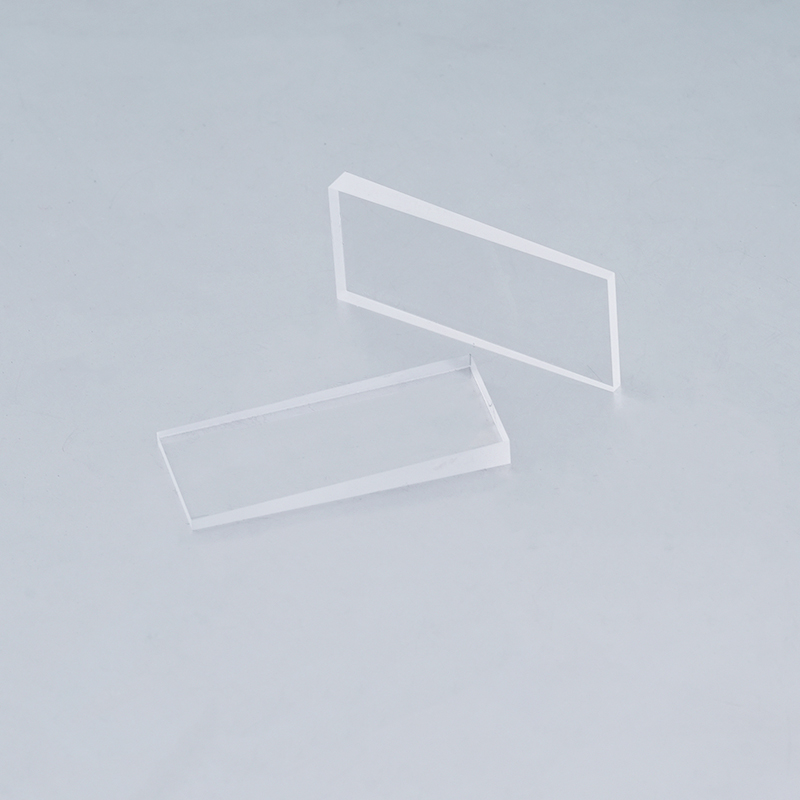

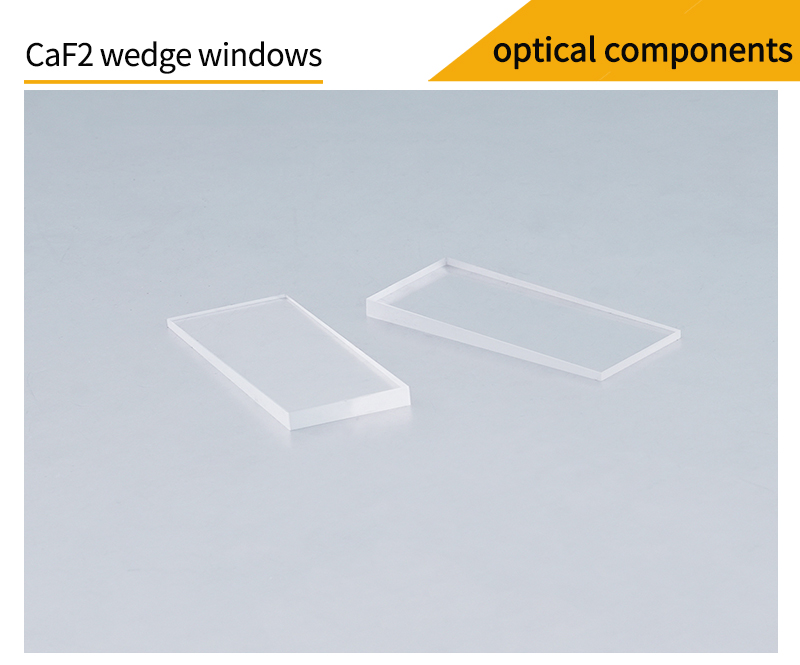

Pictures of calcium fluoride wedger window

Windows are optical glass that have been ground and polished to form two surfaces parallel to each other. They are commonly used as protective devices for electronic sensors, optical lenses, and laser devices. Windows do not change the magnification of the system. The window piece does not change the magnification of the system. Various optical glasses, N-BK7, UV fused silica, IR fused silica, and crystalline materials such as calcium fluoride (CaF2), magnesium fluoride (MgF2), zinc selenide (ZnSe), germanium (Ge), and silicon (Si) are available as substrate materials.

Customized parameters and optical path diagrams for calcium fluoride wedger window

Windows are optical glass that have been ground and polished to form two surfaces parallel to each other. They are commonly used as protective devices for electronic sensors, optical lenses, and laser processing heads. When selecting a window, focus on its material transmission properties as well as its mechanical properties.The important parameters of windows are transmission, surface quality, thickness, parallelism, substrate material and other properties, which can be selected according to the specific application.

Crystal materials for calcium fluoride wedger window

Calcium fluoride (CaF2), colorless cubic crystal, insoluble in water, is one of the few natural crystals that exist in nature, and has important applications in the optical industry because of its good optical properties, such as wide transmission range, high transmittance, low refractive index, and large relative dispersion.

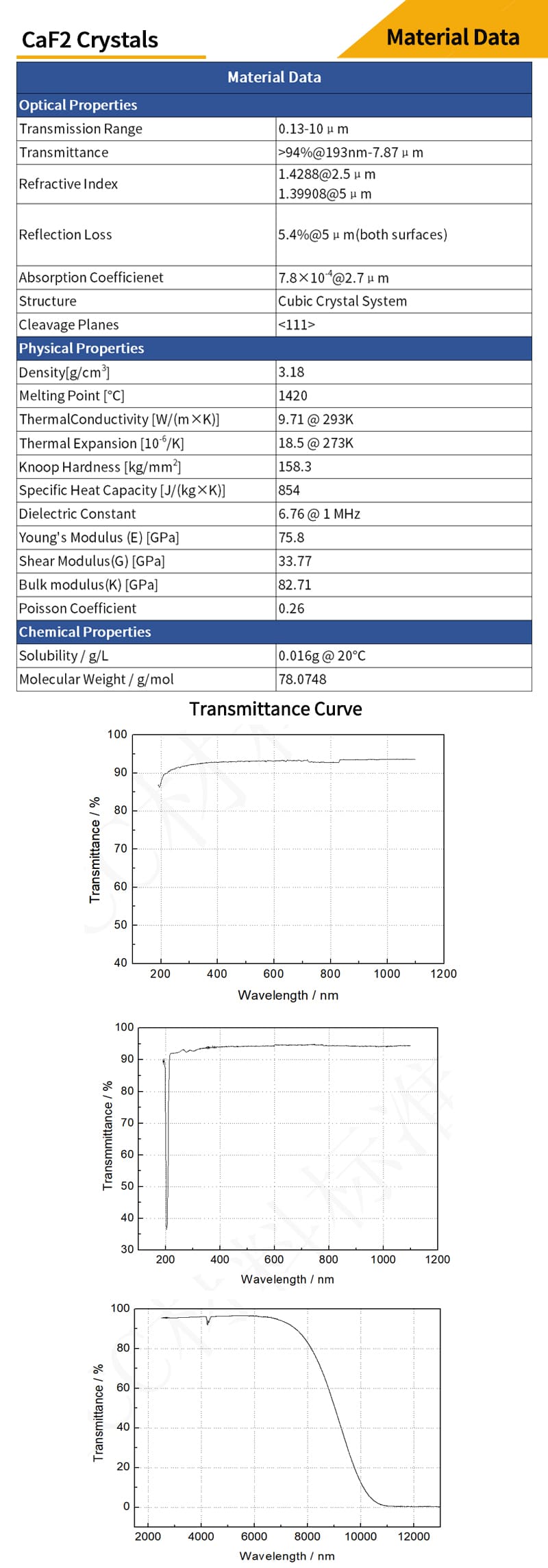

Calcium fluoride wedge  window material data and transmittance curves

Calcium fluoride(CaF2) crystals are widely used as window, lens, prism, beam splitter and substrate materials from vacuum UV to mid-infrared wavelengths because of their high transmittance and very high laser damage threshold in the deep UV region. High purity calcium fluoride single crystals are good window materials for excimer lasers in the vacuum UV band, and single crystals or hot forged single crystals are window materials for carbon monoxide and chemical lasers.The good optical properties of calcium fluoride crystals in the vacuum band are unmatched by other materials.Calcium fluoride single crystal materials for this band also have the advantages of radiation resistance, high ozone resistance, fluorine corrosion resistance, and low cost.

Calcium fluoride Wedge Window Coating Options

Coating refers to coating a transparent electrolyte film or metal film on the surface of the substrate material by physical or chemical methods. The purpose is to change the reflection and transmission characteristics of the material surface to reduce or increase the reflection, beam splitting, color separation, light filtering, polarization and other requirements.We can provide various optical coatings such as anti-reflective films, high-reflective films, spectral films, and metallic films. Broadband anti-reflective films are available for UV, visible, NIR and mid-infrared wavelengths.

Cystal classification of calcium fluoride wedger windows

VIR Grade

●Typical Size:φ80mm×180mm、φ100mm×180mm

●Maximum size:φ400mm×60mm

●Application Wavelength:400nm - 7.6μm

●Crystal Structure:Monocrystalline,Sub-structure,Polycrystalline

●Internal transmittance:>99.0%(10mm thick sample)

●Average stress birefringence:PV 1~30nm/cm@633nm

●Optical uniformity:PV 3 - 50ppm@633nm

●25-125mW green light test without naked eye visible light column, bubbles,

     scattered particles, etc.

UR Grade

●Typical Size:φ80mm×180mm、φ100mm×180mm

●Maximum size:φ400mm×60mm

●Application Wavelength:200nm - 400nm

●Crystal Structure:Single crystal allows substructure

●Internal transmittance:>99.0%(10mm thick sample)

●Average stress birefringence:PV 1~30nm/cm@633nm

●Optical uniformity:PV 3 - 20ppm@633nm

●No absorption peak at 205nm, absorption peak near 306nm±5nm≤0.2%

●25-125mW green light test without naked eye visible light column, bubbles,

     scattered particles, etc.

VUV Grade

●Application Wavelength:130nm - 200nm

●Crystal Structure:Monocrystalline

●Transmittance: >50% @ 130nm,>80% @ 160nm,>85% @ 200nm

                                     (10mm thick sample)

●Average stress birefringence:PV 1~20nm/cm@633nm

●Optical uniformity:PV 1 - 15ppm@633nm

●25-125mW green light test without naked eye visible light column, bubbles,

     scattered particles, etc.

IC Tool Grade,ICT Grade

●Application Wavelength:157nm,193nm,248nm,355nm

●Crystal Structure:Monocrystalline

●Internal transmittance: >99.8% @ 355nm,>99.8% @ 248nm,

     >99.7% @193nm,>99.4% @ 157nm,(10mm thick sample)

     No absorption at 205nm and 306nm

●Average stress birefringence:PV 2~10nm/cm@633nm

●Optical uniformity:PV 3 - 20ppm@633nm

●25-125mW green light test without naked eye visible light column, bubbles,

     scattered particles, etc.

IC Laser Grade,ICL Grade

●Typical metrics are consistent with IC tool Grades

●Laser tolerance: There is no standard available for consultation

●Laser damage threshold: ~7J/cm2 @ 193nm

Raman Grade

●Application Wavelength:130nm-7.6μm

●Crystal Structure:Monocrystalline

●Internal transmittance: >50% @ 130nm,>80% @ 160nm,

     >85% @ 200nm(10mm thick sample)No absorption at 205nm and 306nm

●Average stress birefringence:PV 2~30nm/cm@633nm

●25-125mW green light test without naked eye visible light column, bubbles,

     scattered particles, etc.

●Non-fluorescent crystals

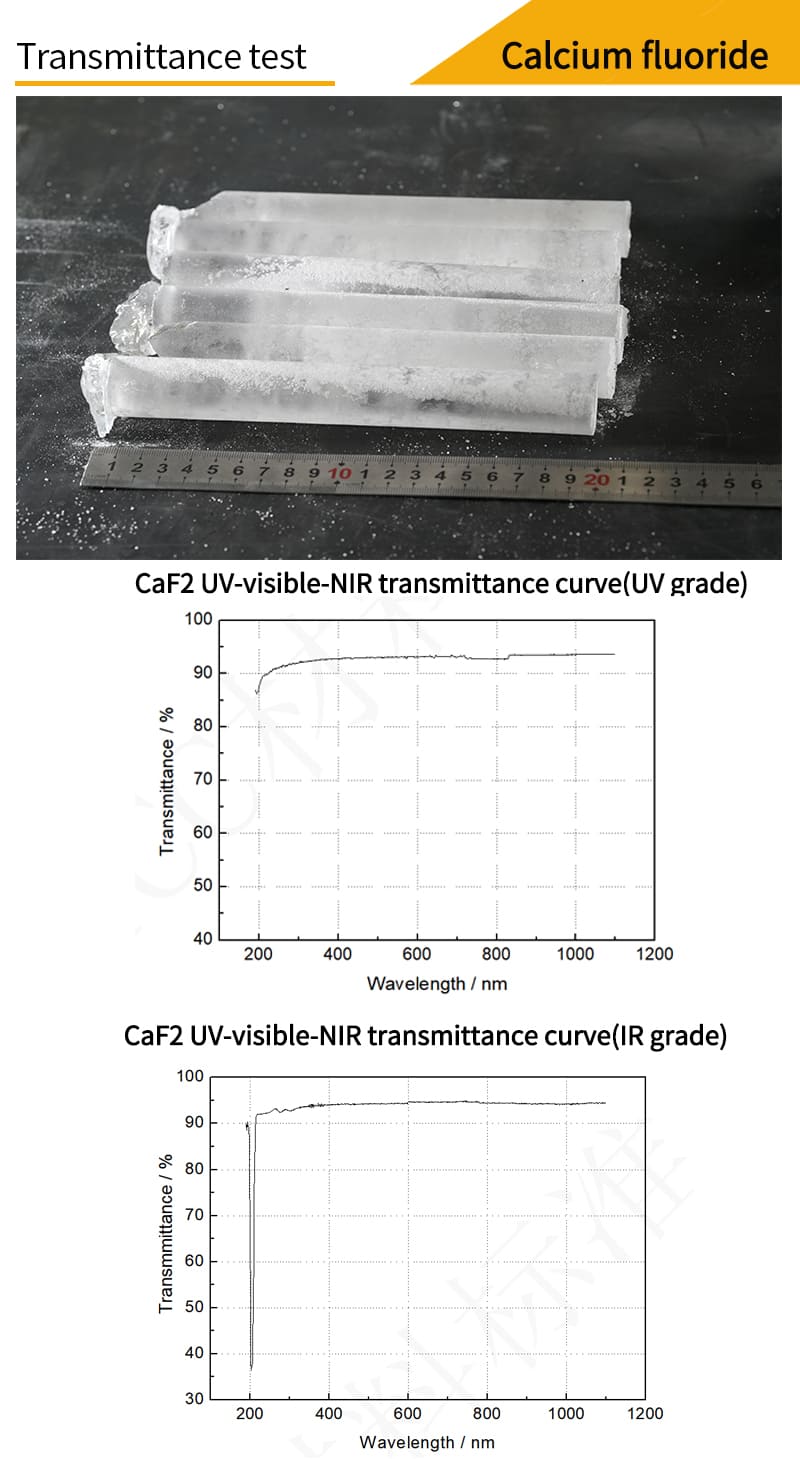

Calcium fluoride window transmittance test

Transmittance test

●Inspection equipment

UV-Visible Spectrophotometer

●Samples:

  No scattering calcium fluoride crystals, diameter not less than 20mm, thickness not less than 3mm,through the polished surface finish to 80/50

●Grade

IR Grade

●The transmittance of 400nm and above is higher than 93%, and the transmittance curve of 200nm~400nm may have absorption at 205nm or 306 peak.

Pictures of monocrystalline of materials used in  calcium fluoride wedge windows

Monocrystalline

●There are no visible grain boundaries or wicker-like stripes on the crystal surface when examined under naked eye daylight.

Pictures of sub-crystalof materials used in calcium fluoride wedge windows

Sub-crystal

●When examined under naked-eye daylight, there are willow stripes on the surface of the crystal with an area < 1/6 (end diameter), and the willow stripes are not visible after polishing .

Pictures of polycrystalline of materials used in calcium fluoride wedge windows

Polycrystalline

●When examined under naked-eye daylight, there are penetrating crystal boundary lines on the surface of the crystal, and the difference in the degree of light and darkness between the two sides of the crystal boundary lines is obvious.

Material Selection

●N-BK7

    N-BK7 is the most commonly used optical glass for processing high quality optical components,, with excellent transmittance from visible to near-infrared wavelengths(350-2000nm), and has a wide range of applications in telescopes, lasers and other fields. N-BK7 is generally chosen when the additional benefits of UV fused silica (very good transmittance and low coefficient of thermal expansion in the UV band) are not required.

●UV fused silica

     UV fused silica has a high transmission from the UV to NIR  (185-2100nm).  In addition, UV fused silica has better uniformity and lower coefficient of thermal expansion than H-K9L (N-BK7), making it particularly suitable for high power laser and imaging applications.

●Calcium fluoride

    Due to its high transmittance and low refractive index within a wavelength of 180nm-8um, calcium fluoride is often used as windows and lenses in spectrometers and thermal imaging systems. In addition, it has good applications in excimer lasers because of its high laser damage threshold.

●Barium fluoride

    Barium fluoride have high transmittance from the 200nm-11um and they are resistant to stronger high-energy radiation. At the same time, barium fluoride has excellent scintillation properties and can be made into various infrared and ultraviolet optical components. However, the disadvantage of barium fluoride is that it is less resistant to water. When exposed to water, the performance degrades significantly at 500℃, but it can be used for applications up to 800℃ in a dry environment. At the same time, barium fluoride has excellent scintillation properties and can be made into various infrared and ultraviolet optical components.It should be noted that when handling barium fluoride material, gloves must be worn at all times and hands must be washed thoroughly after handling.

●Magnesium fluoride

    Magnesium fluoride is ideal for applications in the wavelength range of 200nm-6um. Compared to other materials, magnesium fluoride is particularly durable in the deep UV and far IR wavelength ranges. Magnesium fluoride is a powerful material for resistance to chemical corrosion, laser damage, mechanical shock and thermal shock. It is harder than calcium fluoride crystals, but relatively soft compared to fused silica, and has a slight hydrolysis. It has a Nucleus hardness of 415 and a refractive index of 1.38.

●Zinc selenide

    Zinc selenide has high transmittance in the 600nm-16um and is commonly used in thermal imaging, infrared imaging, and medical systems. Also, due to its low absorption, zinc selenide is particularly suitable for use in high-power CO2 lasers. It should be noted that zinc selenide is a relatively soft material (Nucleus hardness 120) and is easily scratched, so it is not recommended for use in harsh environments. Extra care should be taken when holding, and cleaning, pinching or wiping with even force, and it is best to wear gloves or rubber finger covers to prevent tarnishing. Cannot be held with tweezers or other tools.

●Silicon

    Silicon is suitable for use in the NIR band from 1.2-8um.Because of its low

    density, silicon is particularly suitable in applications where weight

    requirements are sensitive, especially in the 3-5um . Silicon has a Nucleus

    hardness of 1150, which is harder than germanium and not as fragile as

    germanium.It is not suitable for transmission applications in CO2 lasers

    because of its strong absorption band at 9um.

●Germanium

    Germanium is suitable for use in the near-infrared band of 2-16um and is well

    suited for infrared lasers. Due to its high refractive index, minimal surface

    curvature and low chromatic aberration, germanium does not usually require

    correction in low power imaging systems. However, germanium is more

    severely affected by temperature, and the transmittance decreases with

    increasing temperature; therefore, it can only be applied below 100°C. The

    density of germanium (5.33 g/cm³) is taken into account when designing

    systems with strict weight requirements. Germanium lenses feature a

    precision diamond lathe turned surface, a feature that makes them well suited

    for a variety of infrared applications, including thermal imaging systems,

    infrared beam splitters, telemetry, and in the forward-looking infrared (FLIR)

    field.

●CVD ZnS

    CVD ZnS is the only infrared optical material, other than diamond, that covers visible to long-wave infrared (LWIR), full wavelength and even microwave wavelengths, and is currently the most important LWIR window material. It can be used as windows and lenses for high-resolution thermal imaging systems, as well as for advanced military applications such as "tri-optical" windows and near-infrared laser/dual-color infrared composite windows.

Growing workshop

Pictures of calcium fluoride wedger window crystal growth workshopCutting workshopPictures of calcium fluoride wedger window crystal cutting workshopPolishing workshopPictures of calcium fluoride wedger window polishing workshopCoating workshopPictures of calcium fluoride wedger window coating workshopAspheric workshoppictures of calcium fluoride aspheric lens polishing equipmentZYGO detectionZygo interferometer device for detecting PV of calcium fluoride wedger window
