Zine Sulfide Multispectral

Product Introduction:

   Zinc Sulfide Multispectral is a chemically inert material with high purity, insoluble in water, moderate density, easy processing, etc. It is widely used for infrared windows, rectifiers and infrared optical components.Zinc sulfide is a material with good refractive index uniformity and consistency, and has good image transmission performance in the 8000nm-12000nm band. The material also has a high transmittance in the mid-infrared band, but absorption and scattering are enhanced as the wavelength gets shorter.

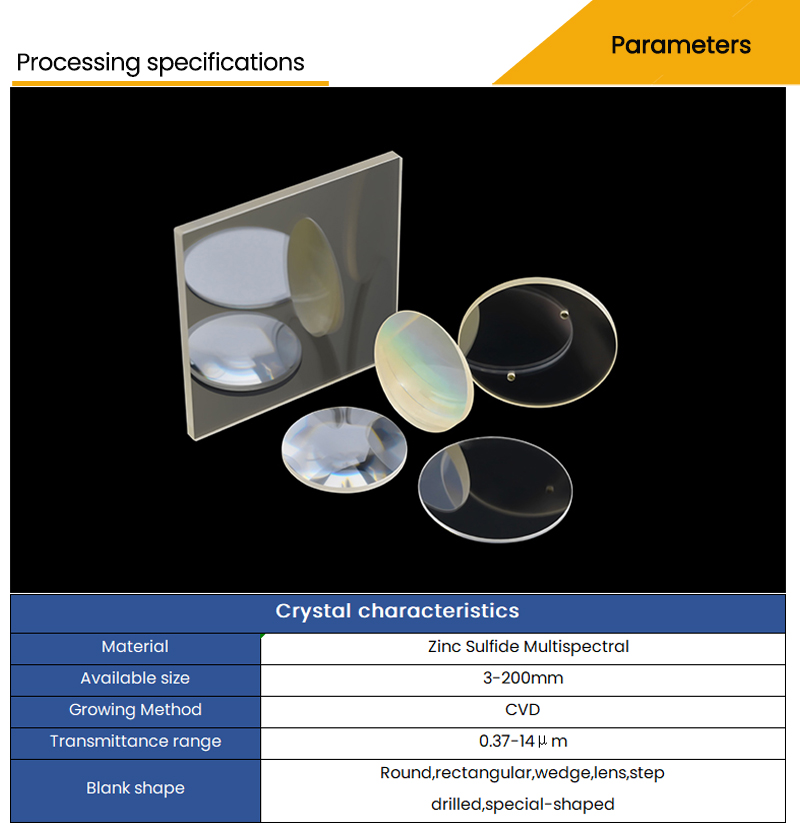

We can provide various specifications of zinc sulfide multispectral blanks and finished products. The shapes of blanks include round, rectangular, drilled, windows, lens, galvanometer,shaped, etc.

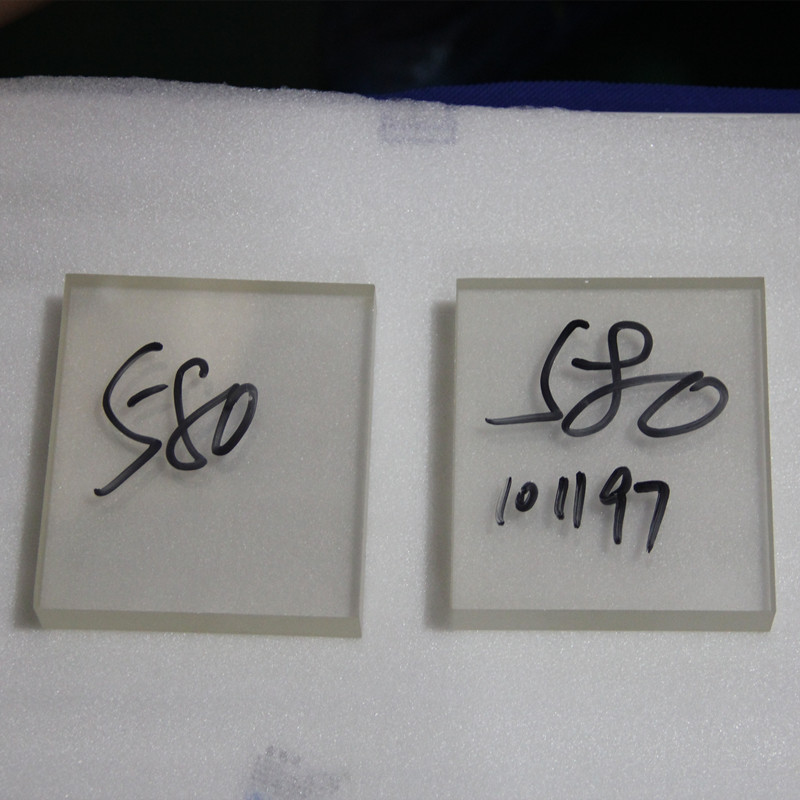

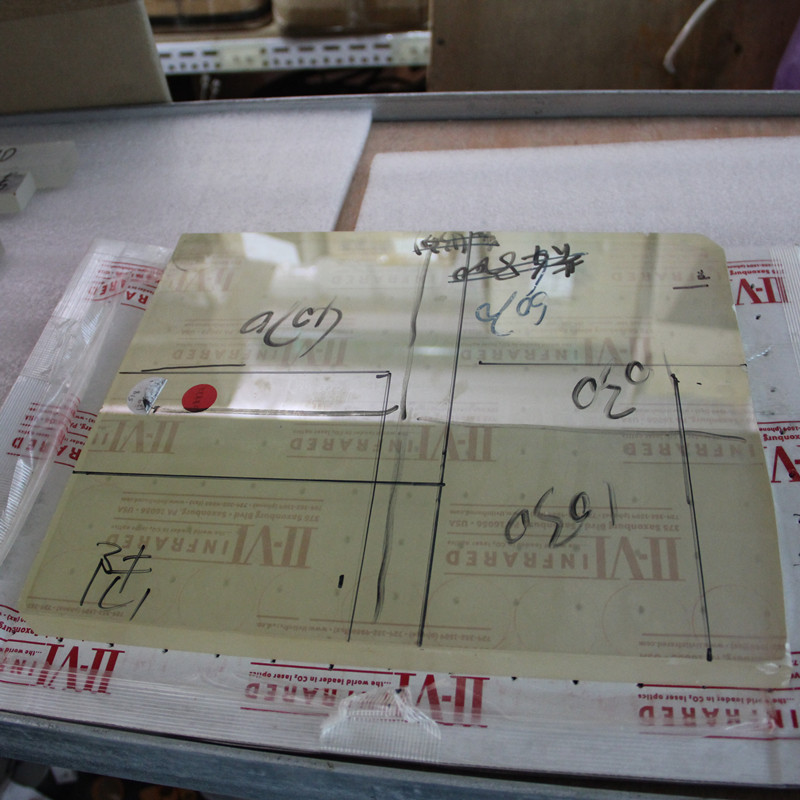

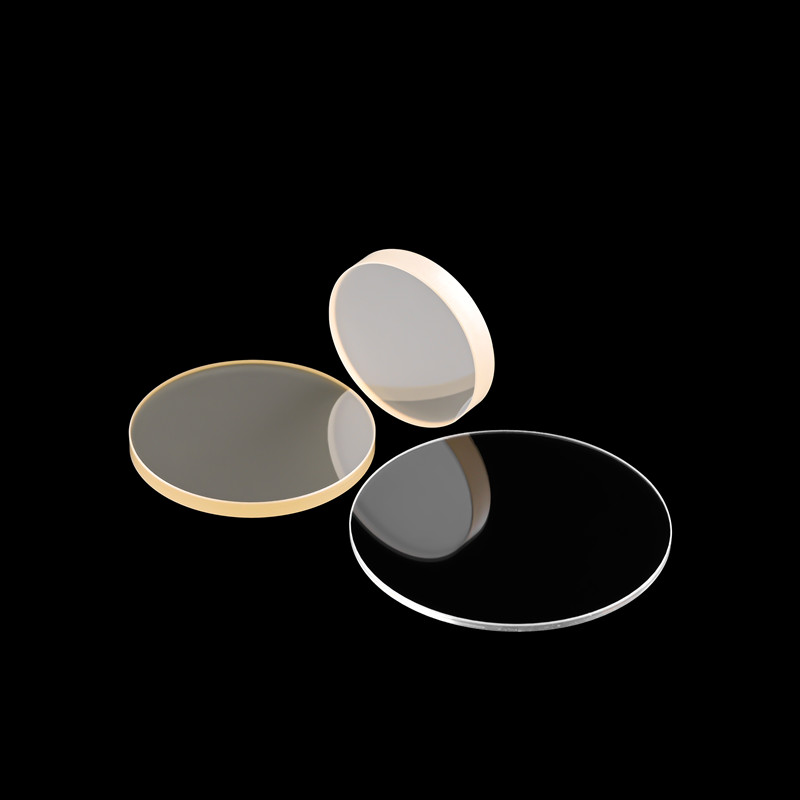

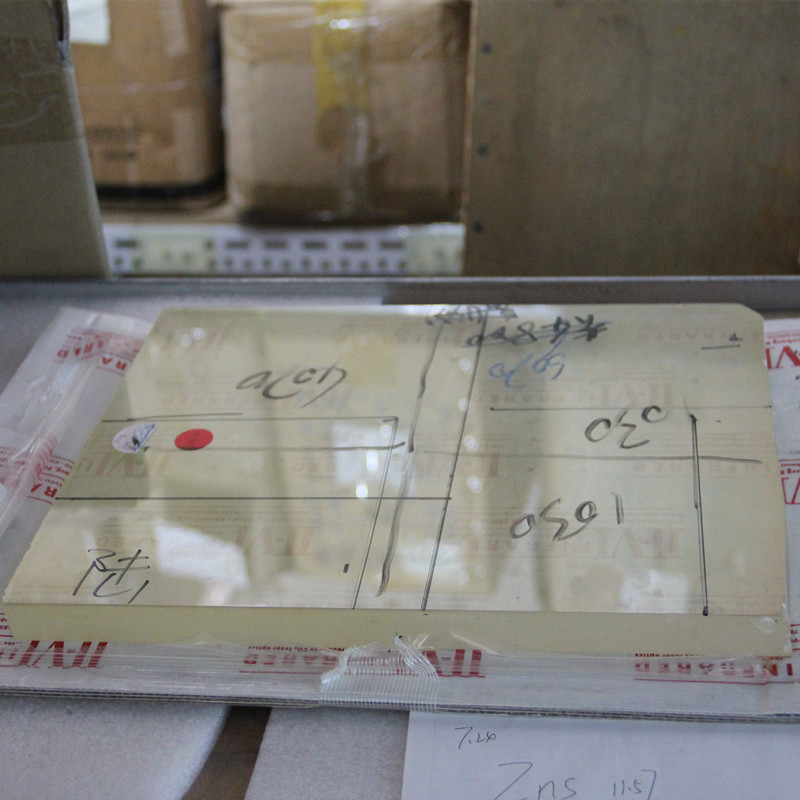

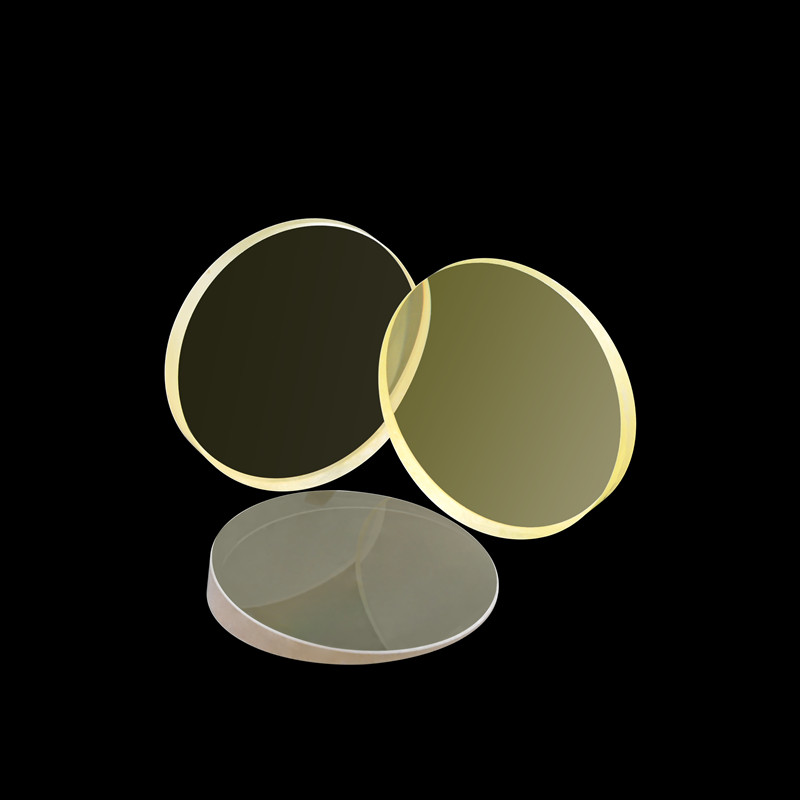

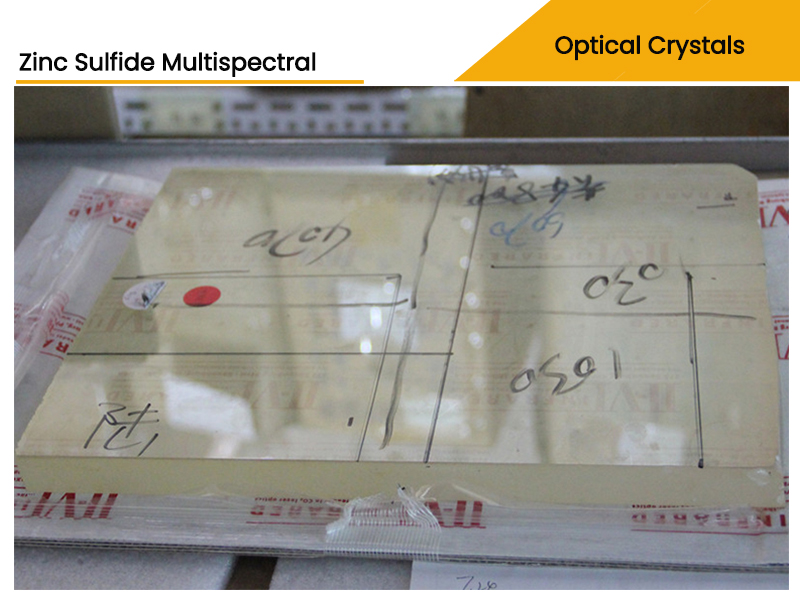

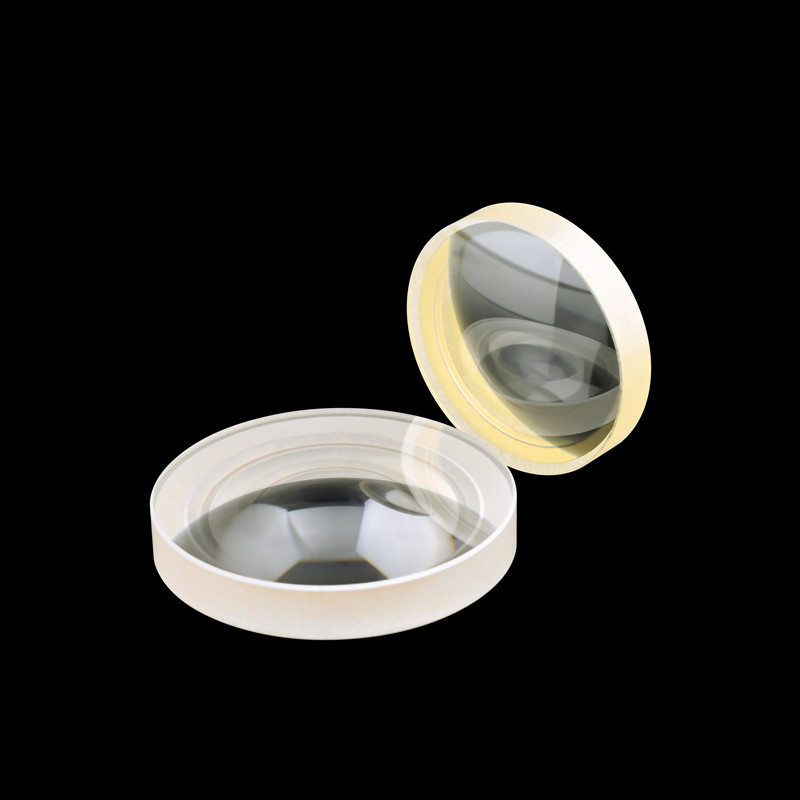

Pictures of multispectral zinc sulfide

Zinc sulfide is a material with good refractive index uniformity and consistency, and has good image transmission performance in the 8000nm-12000nm band. The material also has a high transmittance in the mid-infrared band, but absorption and scattering are enhanced as the wavelength gets shorter. The high hardness of zinc sulfide makes it ideal for use in the infrared windows of missile fairings and military aircraft.

Our company can provide many specifications of zinc sulfide multispectral blanks and finished products.

Customized parameters for multispectral zinc sulfide

Our company can supply many specifications of zinc sulfide multispectral blanks and finished products.The shape of the blank contains round, rectangular, drilled, windows, lenses, galvanometers, special shaped etc.

Multispectral Zinc Sulfide material data

Zinc sulfide multispectral is a chemically inert material with high purity, insoluble in water, moderate density, easy processing, etc. It is widely used for infrared windows, rectifiers and infrared optical components. Zinc sulfide has high hardness and good breaking strength, making it ideal for making missile fairings and infrared Windows for military aircraft.

Multispectral Zinc Sulfide coating options

Coating refers to coating a transparent electrolyte film or metal film on the surface of the substrate material by physical or chemical methods. The purpose is to change the reflection and transmission characteristics of the material surface to reduce or increase the reflection, beam splitting, color separation, light filtering, polarization and other requirements.We can provide various optical coatings such as anti-reflective films, high-reflective films, spectral films, and metallic films. Broadband anti-reflective films are available for UV, visible, NIR and mid-infrared wavelengths.

Cystal classification of multispectral zinc sulfide

●Transmittance

The transmission curve of standard CVD zinc sulfide, at (20±3)℃ temperature, is shown in the figure. The transmission in the spectral range from 8μm to 10μm should not be less than 70%; The transmission curve in the spectral range from 3μm to 10μm should not have other absorption peaks except for the absorption peak near 6μm.

cvd zinc sulfide crystal material transmittance curves

The transmission curves of the multispectral CVD zinc sulfide at (20±3)℃ are shown in Fig. The transmittance at 1064 nm is not less than 70%, and the transmittance in the spectral range from 3 μm to 5 μm is not less than69%, and the transmittance curve is smooth without absorption peak; The transmittance  in the spectral range from 8 μm to 10 μm is not less than 70%.

Multispectral cvd zinc sulfide crystal material transmittance curve

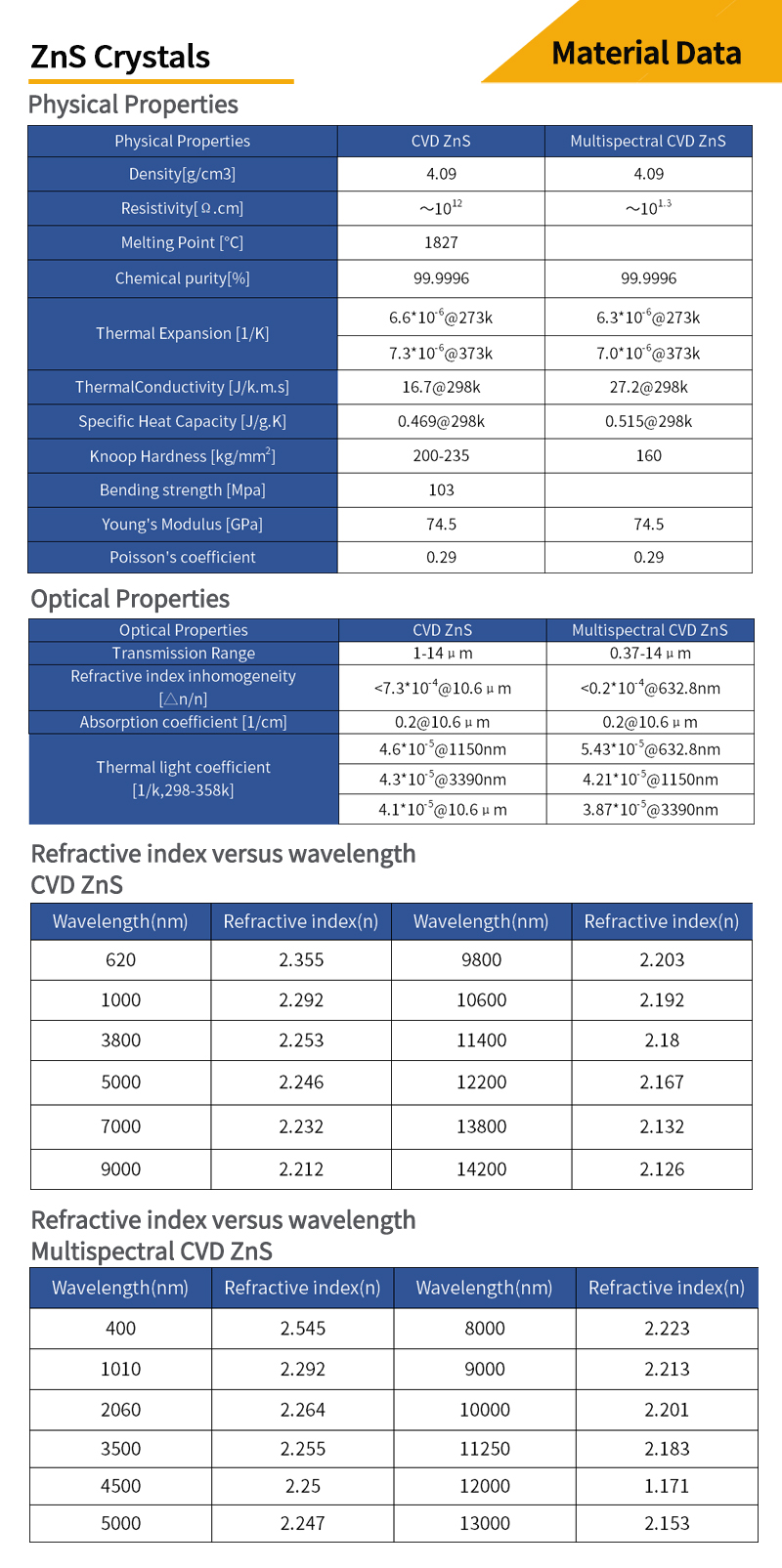

Refractive index: The refractive index of CVD zinc sulfide should be in accordance with the following table.

Multispectral cvd zinc sulfide and cvd zinc sulfide crystal materials refractive index data by wavelengths

●Refractive index inhomogeneity

 The refractive index inhomogeneity of multispectral CVD zinc sulfide (at a wavelength of 0.6328 μm) should be less than 4×10-5 .

●Material bending strength standards

 Standard CVD zinc sulfide, bending strength should be greater than 100MPa.

Multispectral CVD zinc sulfide, bending strength should be greater than 70MPa.

Material Selection

●N-BK7

    N-BK7 is the most commonly used optical glass for processing high quality optical components,, with excellent transmittance from visible to near-infrared wavelengths(350-2000nm), and has a wide range of applications in telescopes, lasers and other fields. N-BK7 is generally chosen when the additional benefits of UV fused silica (very good transmittance and low coefficient of thermal expansion in the UV band) are not required.

●UV fused silica

     UV fused silica has a high transmission from the UV to NIR  (185-2100nm).  In addition, UV fused silica has better uniformity and lower coefficient of thermal expansion than H-K9L (N-BK7), making it particularly suitable for high power laser and imaging applications.

●Calcium fluoride

    Due to its high transmittance and low refractive index within a wavelength of 180nm-8um, calcium fluoride is often used as windows and lenses in spectrometers and thermal imaging systems. In addition, it has good applications in excimer lasers because of its high laser damage threshold.

●Barium fluoride

    Barium fluoride have high transmittance from the 200nm-11um and they are resistant to stronger high-energy radiation. At the same time, barium fluoride has excellent scintillation properties and can be made into various infrared and ultraviolet optical components. However, the disadvantage of barium fluoride is that it is less resistant to water. When exposed to water, the performance degrades significantly at 500℃, but it can be used for applications up to 800℃ in a dry environment. At the same time, barium fluoride has excellent scintillation properties and can be made into various infrared and ultraviolet optical components.It should be noted that when handling barium fluoride material, gloves must be worn at all times and hands must be washed thoroughly after handling.

●Magnesium fluoride

    Magnesium fluoride is ideal for applications in the wavelength range of 200nm-6um. Compared to other materials, magnesium fluoride is particularly durable in the deep UV and far IR wavelength ranges. Magnesium fluoride is a powerful material for resistance to chemical corrosion, laser damage, mechanical shock and thermal shock. It is harder than calcium fluoride crystals, but relatively soft compared to fused silica, and has a slight hydrolysis. It has a Nucleus hardness of 415 and a refractive index of 1.38.

●Zinc selenide

    Zinc selenide has high transmittance in the 600nm-16um and is commonly used in thermal imaging, infrared imaging, and medical systems. Also, due to its low absorption, zinc selenide is particularly suitable for use in high-power CO2 lasers. It should be noted that zinc selenide is a relatively soft material (Nucleus hardness 120) and is easily scratched, so it is not recommended for use in harsh environments. Extra care should be taken when holding, and cleaning, pinching or wiping with even force, and it is best to wear gloves or rubber finger covers to prevent tarnishing. Cannot be held with tweezers or other tools.

●Silicon

    Silicon is suitable for use in the NIR band from 1.2-8um.Because of its low

    density, silicon is particularly suitable in applications where weight

    requirements are sensitive, especially in the 3-5um . Silicon has a Nucleus

    hardness of 1150, which is harder than germanium and not as fragile as

    germanium.It is not suitable for transmission applications in CO2 lasers

    because of its strong absorption band at 9um.

●Germanium

    Germanium is suitable for use in the near-infrared band of 2-16um and is well

    suited for infrared lasers. Due to its high refractive index, minimal surface

    curvature and low chromatic aberration, germanium does not usually require

    correction in low power imaging systems. However, germanium is more

    severely affected by temperature, and the transmittance decreases with

    increasing temperature; therefore, it can only be applied below 100°C. The

    density of germanium (5.33 g/cm³) is taken into account when designing

    systems with strict weight requirements. Germanium lenses feature a

    precision diamond lathe turned surface, a feature that makes them well suited

    for a variety of infrared applications, including thermal imaging systems,

    infrared beam splitters, telemetry, and in the forward-looking infrared (FLIR)

    field.

●CVD ZnS

    CVD ZnS is the only infrared optical material, other than diamond, that covers visible to long-wave infrared (LWIR), full wavelength and even microwave wavelengths, and is currently the most important LWIR window material. It can be used as windows and lenses for high-resolution thermal imaging systems, as well as for advanced military applications such as "tri-optical" windows and near-infrared laser/dual-color infrared composite windows.
